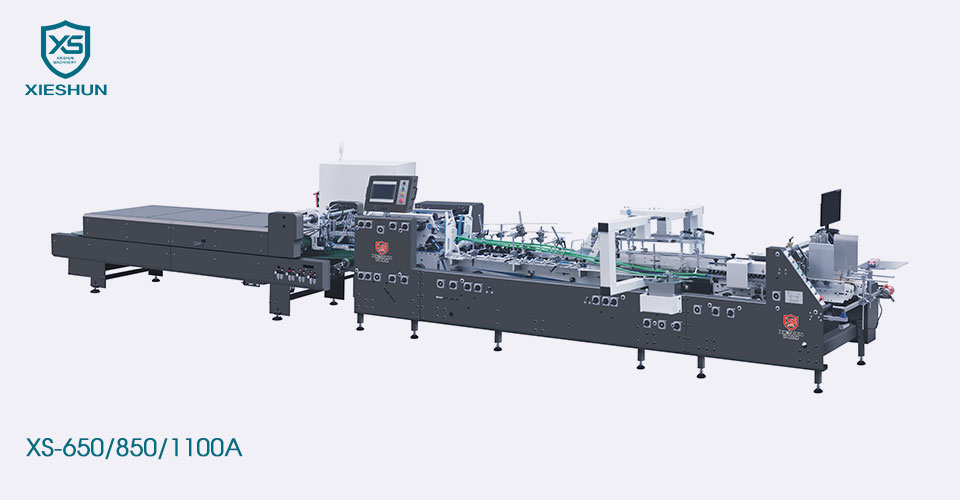

XIESHUN XS-650/850/1100A Straight Line Automatic High Speed Folder Gluer run in 400m/min maximum for Straight line box, ,pneumatic lifting of the final folding section for optional. Straight Line Automatic High Speed Folder Gluer build in 8-16mm thickening steel, components with famous intemational brand to sure high stability andsafety, Equipped with wireless control system for easily operation and adjustment.
| Model | XS-650A | XS-850A | XS-1100A |
| Suitable material | 200-800g/m² cardboard and N/F&E flute corrugated board | ||
| Speed range | 0-400m/min | ||
| Inching speed | 30m/min | ||
| Max blank width | 650mm | 850mm | 1100mm |
| Dimension(L) | 11000mm | 11500mm | 12000mm |
| Dimension(W*H) | 1400x1600mm | 1600x1600mm | 1850x1600mm |
| Mechanical weight | 5T | 6T | 7T |
| Mechanical power | 14.2kw | 18.5kw | 18.5kw |
| Compressed air | 6bar | ||
| Air compressor capacity | 10m²/h | ||
| Air tank capacity | 60L | ||
| Model | XS-650A | XS-850A | XS-1100A | |
 Straight line box
|
A | 130-650mm | 160-850mm | 170-1100mm |
| B | 100-600mm | 100-900mm | 100-900mm | |
| E | 60-320mm | 70-420mm | 70-540mm |
|
Feeder ◆The left and right side baffles are easy to lift. ◆The paper feeding belt of the paper feeding unit can be adjusted independently to ensure smooth paper feeding. ◆Servo motor, independent speed regulation to ensure uniform paper spacing. ◆Paper feeding suction device (optional). |
|
Alignment ◆The cardboard sent out by the paper feeding unit is corrected and guided by the alignment to make the cardboard run in a straight line. ◆The upper pressure drive of the correction unit can be adjusted up and down to adapt to different cardboard thicknesses and provide stability guarantee. |
|
Lower Gluing Unit ◆Mechanical left and right lower glue cylinders, with separate design of glue wheel and Glue tank, high speed without glue throwing, easy to clean and maintain. ◆The glue wheel is 5mm wide and can be replaced according to the product. |
|
Folding Section ◆3-plate transmission belt plate structure, the middle plate can be disassembled independently, which is convenient for small box forming. ◆The left and right outer folding belt speeds can be fine-tuned independently to ensure forming accuracy. |
|
Transfer Section ◆Independent frequency conversion of separate motors. ◆Easy to adjust the upper and lower belt extension. ◆Equipped with a high-speed electronic kick counter. |
|
Control Panel ◆Adopt 10-inch large screen, easy and intuitive operation. ◆Multiple languages are available. ◆Memory function and remote control (optional). |
|
Conveyor ◆In automatic mode, the box spacing is set, and the belt speed is proportional to the host speed. When the photoelectric detects the box, the belt moves. ◆In manual mode, the belt moves at a constant speed and is not affected by the host speed. ◆The pressure part adopts pneumatic pressing, which makes the pressure control more precise and the product bonding effect more guaranteed. |
