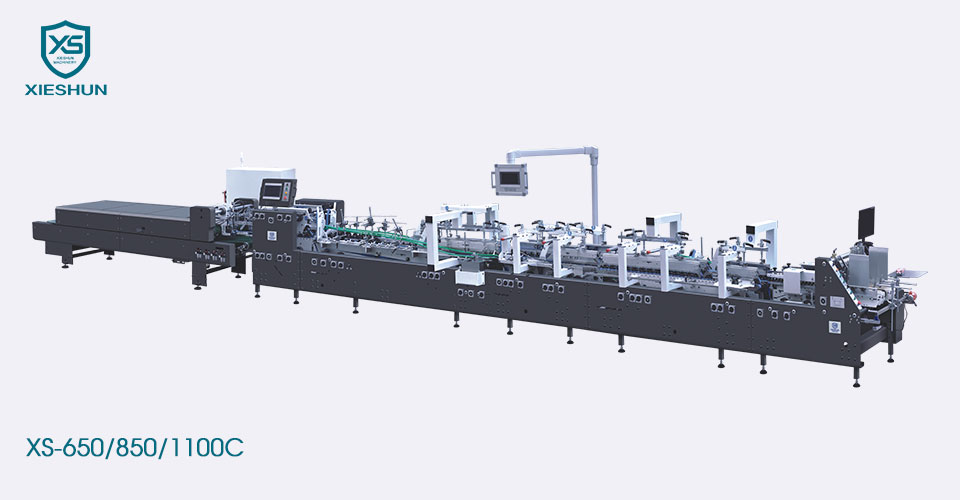

4/6 Corner Automatic High Speed Folder Gluer

Alignment

◆The cardboard sent out by the paper feeding department is corrected and guided by the correction department to make the cardboard run in a straight line.

◆The upper pressure drive of the correction department can be adjusted up and down to adapt to different cardboard thicknesses and provide stability guarantee.

Pre-folding Section

◆The segmented left and right upper belt plates can be adjusted according to product requirements, which is fast and efficient.

◆It can efficiently complete the 180-degree pre-folding of the carton on line 1 and the 135-degree pre-folding of the 3rd line to optimize the final forming effect.

Lock Bottom

3 groups of conveyor belt structure, segmented upper belt plate function, can effectively overcome the problems in the production of special-shaped box products.

The middle upper belt plate is detachable and can be disassembled and debugged according to product requirements.

Four & Six Corner Device 4&6-corner Device

◆The electronic folding hook driven and controlled by the intelligent servo motor is installed on two independently controlled servo axes to accurately guide the folding of all the box flaps.

◆It can produce four and six corner boxes and other different types.

◆The human-machine interface is intelligently set, easy to operate, intuitive and easy to understand.

Lower Gluing Unit

◆Mechanical left and right lower glue cylinders, with separate design of glue wheel and glue cylinder, high speed without glue throwing, easy to clean and maintain.

◆The glue wheel is 5mm wide and can be replaced according to the product.

Folding Section

◆3-plate transmission belt plate structure, the middle plate can be disassembled independently, which is convenient for small box forming.

◆The left and right outer folding belt speeds can be fine-tuned independently to ensure forming accuracy.

Transfer Section

◆Separate motor with independent frequency conversion.

◆The upper and lower belt extension adjustment is simple and easy to operate.

◆Equipped with high-speed electronic kick counter.

Control Panel

◆10-inch large screen, easy and intuitive operation.

◆Multiple languages available.

◆Memory function and remote control (optional).

Conveyor

◆In automatic mode, the box spacing is set, the belt speed and the host speed are proportionally linked, and the belt moves when the photoelectric detects the box.

◆In manual mode, the belt moves at a constant speed and is not affected by the host speed.

◆The pressure part adopts pneumatic pressing, the pressure control is more precise, and the product bonding effect is more guaranteed.
