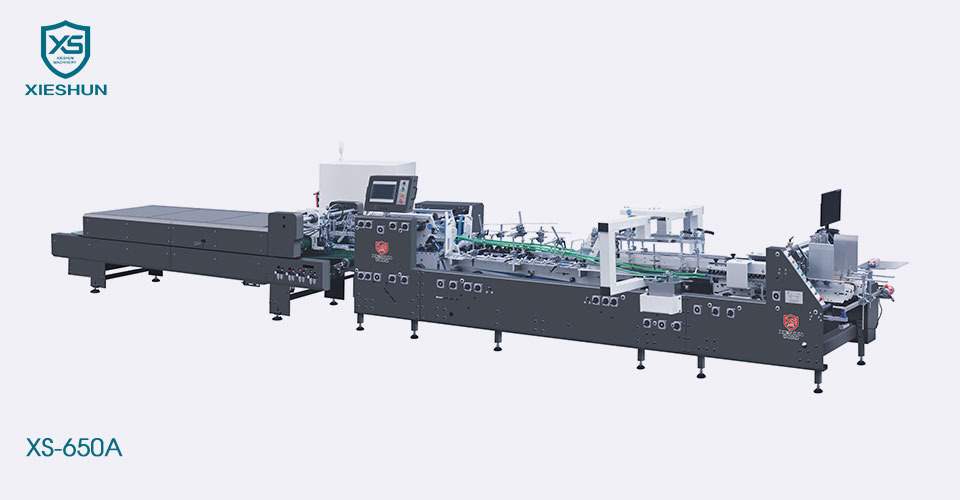

Straight Line Automatic High Speed Gluer Machine

Alignment

◆The cardboard sent out by the paper feeding unit is corrected and guided by the alignment to make the cardboard run in a straight line.

◆The upper pressure drive of the correction unit can be adjusted up and down to adapt to different cardboard thicknesses and provide stability guarantee.

Lower Gluing Unit

◆Mechanical left and right lower glue cylinders, with separate design of glue wheel and Glue tank, high speed without glue throwing, easy to clean and maintain.

◆The glue wheel is 5mm wide and can be replaced according to the product.

Folding Section

◆3-plate transmission belt plate structure, the middle plate can be disassembled independently, which is convenient for small box forming.

◆The left and right outer folding belt speeds can be fine-tuned independently to ensure forming accuracy.

Transfer Section

◆Independent frequency conversion of separate motors.

◆Easy to adjust the upper and lower belt extension.

◆Equipped with a high-speed electronic kick counter.

Control Panel

◆Adopt 10-inch large screen, easy and intuitive operation.

◆Multiple languages are available.

◆Memory function and remote control (optional).

Conveyor

◆In automatic mode, the box spacing is set, and the belt speed is proportional to the host speed. When the photoelectric detects the box, the belt moves.

◆In manual mode, the belt moves at a constant speed and is not affected by the host speed.

◆The pressure part adopts pneumatic pressing, which makes the pressure control more precise and the product bonding effect more guaranteed.
