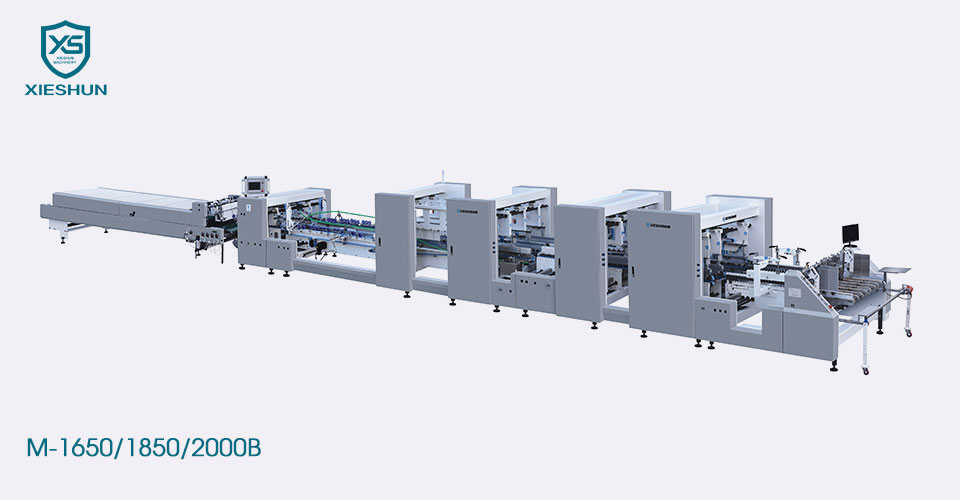

Automatic Heavy Duty Corrugated Bottom Lock Folder Gluer

Model:M-1650/1850/2000B

China XIESHUN M-1650/1850/2000B Automatic Heavy Duty Corrugated Bottom Lock Folder Gluer, Use PLC and imported electronic components, feeder with Independent servo Motor, interior plate are moved using linear guides to ensure precision and ease of operation.

Send Inquiry

Product Description

The Automatic Heavy Duty Corrugated Bottom Lock Folder Gluer is especially designed for all kinds of cardboard, corrugated packaging boxes, With separate unit for secondary-creasing, meet 3ply and 5ply cartons folding requirement perfectly.Secondary-Creasing can align the fish tail of cartons due to different reasons sush as improper die cutting and creasing,etc

Model	XS-M1650	XS-M1850	XS-M2000
Suitable material	200-1200g/m², E/F/B/BE/AB three-layer or five layer corrugated paper
Speed range	0-300m/min
Inching speed	30m/min
Max blank width	1650mm	1850mm	2000mm
	XS-M1650B	XS-1850B	XS-M2000B
Dimension(L)	20500mm	20500mm	20500mm
Dimension(W*H)	2400x1800mm	2600x1800mm	2800x1800mm
Mechanical weight	15T	16.5T	18T
Mechanical power	21kw	21kw	21kw
Compressed air	6bar
Air compressor capacity	10m²/h
Air tank capacity	60L

Model		XS-M1650	XS -M1850	XS-M2000B
	A	300-1650mm	300-1850mm	300-2000mm
	B	170-1400mm	170-1400mm	170-1400mm
	E	140-820mm	140-920mm	140-990mm
	A	300-1600mm	300-1800mm	300-1950mm
	B	170-1400mm	170-1400mm	170-1400mm
	E	140-820mm	140-920mm	140-990mm

Multi-Wedge Belt

Automatic Heavy Duty Folder Gluer

PARTIAL PICTURES OF MACHINE

	Feeder ◆The left and right side baffles are easy to lift. ◆The paper feeding belt of the paper feeding unit can be adjusted independently to ensure smooth paper feeding. ◆Servo motor, independent speed regulation to ensure uniform paper spacing. ◆Paper feeding suction device (optional). ◆Plate movement by linear guideway, adjust easily.
	Alignment ◆The cardboard sent out by the paper feeding unit is corrected and guided by the correction unit to make the cardboard run in a straight line. ◆The upper pressure drive of the correction unit can be adjusted up and down to adapt to different cardboard thicknesses and provide stability guarantee. ◆Extra long alignment for guidance. 3 plates help to support wide corrugated paper.
	Secondary Line pressing section ◆Secondary-creasing meet 3 Ply & 5 ply cartons folding perfectly. ◆Secondary-creasing can align the fish tail.
	Lock bottom ◆Three groups of carrier belt Structure
	Glue section ◆Mechanical left and right lower glue cylinders, with separate glue wheel and glue cylinder design, high speed without glue throwing, easy to clean and maintain. ◆The glue wheel is 20mm wide and can be replaced according to the product.
	Folding Section ◆3-plate transmission belt plate Structure. ◆The left and right outer folding belt speeds can be fine- tuned independently to ensure molding accuracy. ◆Extra-wild outlet belt. ◆Self-drive upper carriers, precise folding for corrugated boxes.
	Conveyor ◆Independent frequency conversion of separate motors. ◆Easy to adjust the upper and lower belt extension. ◆Equipped with high-speed electronic kick counter.
	Pneumatic press bed ◆In automatic mode, the box spacing is set, the belt speed and the host speed are proportionally linked, and the belt moves when the photoelectric detects the box. ◆In manual mode, the belt moves at a constant speed and is not affected by the host speed. ◆The pressure part adopts pneumatic pressing, the pressure control is more precise, and the product bonding effect is more guaranteed.
