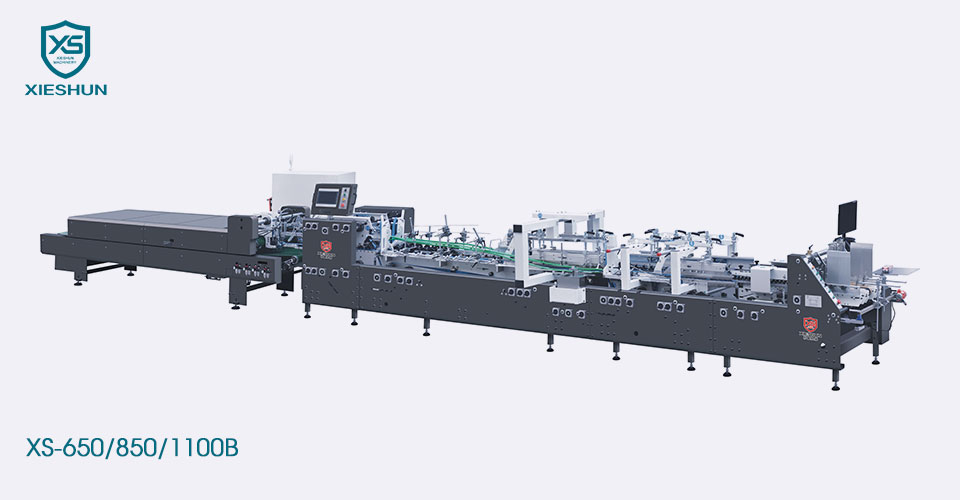

XIESHUN XS-650/850/1100B Crash Lock Automatic High Speed Folder Gluer Suitable for lock bottom box and straight line box in high speed and efficient production，apply in pharmaceutical or cosmetic industries. Cardboard 200-800 gsm and corrugated box flute N/E and flute F.
| Model | XS-650 B | XS-850 B | XS-1100 B |
|---|---|---|---|
| Suitable material | 200-800g/㎡cardboard and N/F&E flute corrugated board | ||
| Speed range | 0-400m/min | ||
| Inching speed | 30m/min | ||
| Max blank width | 650mm | 850mm | 1100mm |
| Dimension(L) | 12500mm | 13000mm | 13500mm |
| Dimension(W*H) | 1400mm×1600mm | 1600mm×1600mm | 1850mm×1600mm |
| Mechanical weight | 5.5T | 7T | 8T |
| Mechanical power | 14.2kw | 19kw | 19kw |
| Compressed air | 6bar | ||
| Air compressor capacity | 10㎡/h | ||
| Air tank capacity | 60L | ||
| Model |
|
XS-650 B | XS-850 B | XS-1100 B |
|---|---|---|---|---|
|
A | 130-650mm | 160-850mm | 170-1100mm |
| B | 100-600mm | 100-900mm | 100-900mm | |
| E | 60-320mm | 70-420mm | 70-540mm | |
|
A | 146-600mm | 170-800mm | 170-1050mm |
| B | 100-600mm | 170-900mm | 170-900mm | |
| E | 60-320mm | 80-420mm | 80-540mm |
|
Feeder
– Set up quickly and Easy repeatability –Variable speed by independent –servo motor – Adjustable on the run – Light maintenance – Feeds most types of materials – Handles most box styles – Feeder Air suction(optional)
|
|
Alignment
–The paperboard sent by feeder shall be corrected by the alignment to ensue go straight. – The upper pressure drive can be adjusted up and down to adapt to different paperboard thickness.
|
|
Lock Bottom 3 groups of conveyor belt structure, segmented upper belt plate function, can effectively overcome the problems in the production of special-shaped box products. The middle upper belt plate is detachable and can be disassembled and debugged according to product requirements. |
|
Lower Gluing Unit ◆Mechanical left and right lower glue cylinders, with separate design of glue wheel and glue cylinder, high speed without glue throwing, convenient cleaning and maintenance. ◆The glue wheel is 5mm wide and can be replaced according to the product. |
|
Folding Section ◆3-plate transmission belt plate structure, the middle plate can be disassembled independently, which is convenient for small box forming. ◆The left and right outer folding belt speeds can be fine-tuned independently to ensure forming accuracy. |
|
Transfer Section ◆Separate motor with independent frequency conversion. ◆The upper and lower belt extension adjustment is simple and easy to operate. ◆Equipped with high-speed electronic kick counter. |
|
Control Panel ◆10-inch large screen, easy and intuitive operation. ◆Multiple languages available. ◆Memory function and remote control (optional). |
|
Conveyor ◆In automatic mode, the box spacing is set, the belt speed and the host speed are proportionally linked, and the belt moves when the photoelectric detects the box. ◆In manual mode, the belt moves at a constant speed and is not affected by the host speed. ◆The pressure part adopts pneumatic pressing, the pressure control is more precise, and the product bonding effect is more guaranteed. |
