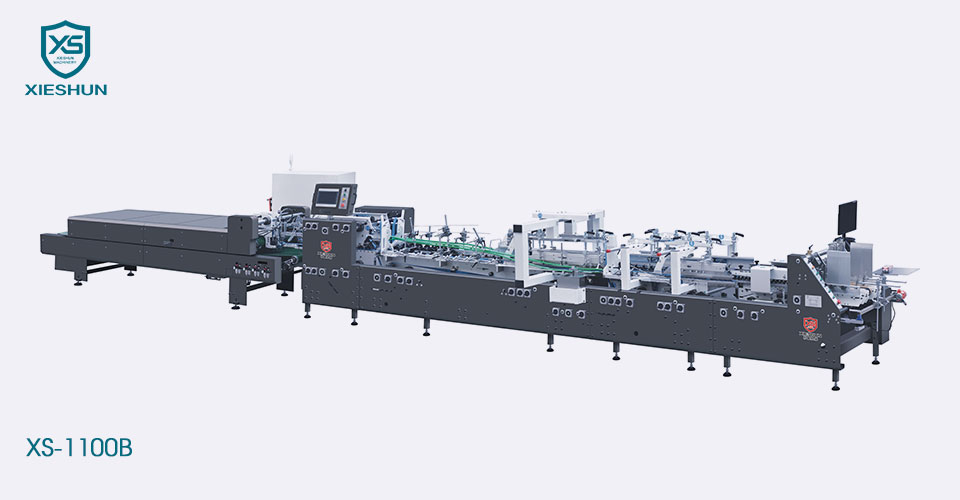

XS-1100B XIESHUN Crash Lock Automatic High Speed Folder And Gluer Machine is ideal for the rapid and efficient production of lock bottom and straight line boxes, catering specifically to the pharmaceutical and cosmetic industries. It accommodates cardboard ranging from 200 to 800 gsm and processes corrugated boxes with flute types N/E and F, ensuring high-speed and reliable performance.
| Model | XS-1100 B |
|---|---|
| Suitable material | 200-800g/㎡cardboard and N/F&E flute corrugated board |
| Speed range | 0-400m/min |
| Inching speed | 30m/min |
| Max blank width | 1100mm |
| Dimension(L) | 13500mm |
| Dimension(W*H) | 1850mm×1600mm |
| Mechanical weight | 8T |
| Mechanical power | 19kw |
| Compressed air | 6bar |
| Air compressor capacity | 10㎡/h |
| Air tank capacity | 60L |
| Model |
|
XS-1100 B |
|---|---|---|
|
A | 170-1100mm |
| B | 100-900mm | |
| E | 70-540mm | |
|
A | 170-1050mm |
| B | 170-900mm | |
| E | 80-540mm |
|
Feeder ◆The left and right side baffles can be lifted for easy operation. ◆The paper feeding belt of the paper feeding unit can be adjusted independently to ensure smooth and stable paper feeding. ◆Servo motor, independent speed regulation to ensure uniform paper spacing. ◆Paper feeding suction device (optional). |
|
Alignment ◆The cardboard sent out by the paper feeding department is corrected and guided by the correction department to make the cardboard run in a straight line. ◆The upper pressure drive of the correction department can be adjusted up and down to adapt to different cardboard thicknesses and provide stability guarantee. |
|
Lock Bottom 3 groups of conveyor belt structure, segmented upper belt plate function, can effectively overcome the problems in the production of special-shaped box products. The middle upper belt plate is detachable and can be disassembled and debugged according to product requirements. |
|
Lower Gluing Unit ◆Mechanical left and right lower glue cylinders, with separate design of glue wheel and glue cylinder, high speed without glue throwing, convenient cleaning and maintenance. ◆The glue wheel is 5mm wide and can be replaced according to the product. |
|
Folding Section ◆3-plate transmission belt plate structure, the middle plate can be disassembled independently, which is convenient for small box forming. ◆The left and right outer folding belt speeds can be fine-tuned independently to ensure forming accuracy. |
|
Transfer Section ◆Separate motor with independent frequency conversion. ◆The upper and lower belt extension adjustment is simple and easy to operate. ◆Equipped with high-speed electronic kick counter. |
|
Control Panel ◆10-inch large screen, easy and intuitive operation. ◆Multiple languages available. ◆Memory function and remote control (optional). |
|
Conveyor ◆In automatic mode, the box spacing is set, the belt speed and the host speed are proportionally linked, and the belt moves when the photoelectric detects the box. ◆In manual mode, the belt moves at a constant speed and is not affected by the host speed. ◆The pressure part adopts pneumatic pressing, the pressure control is more precise, and the product bonding effect is more guaranteed. |
