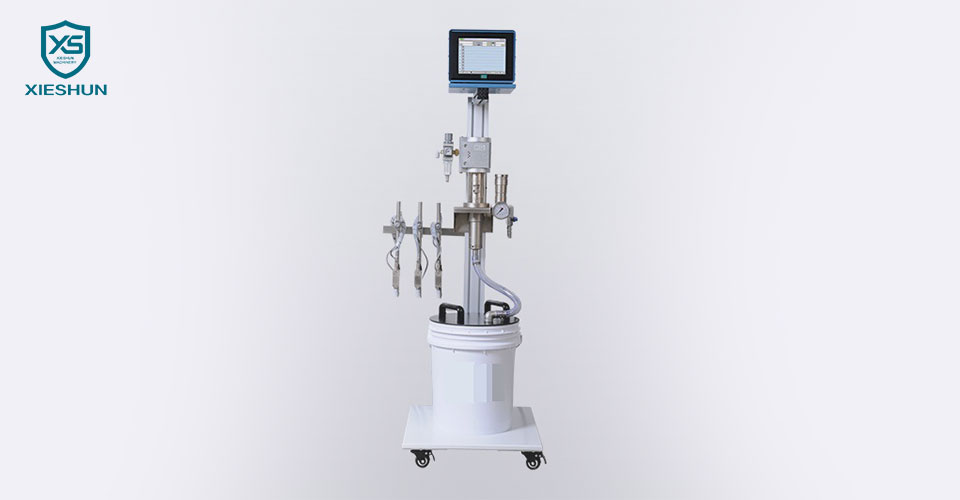

KQ glue guns system, convenient in the production of crash lock box、4/6 corner box and various special-shaped box, gluing quickly and accurately sizing. With cold gluing system or hot melt gluing system for optional.
|
High efficiency controller Big screen touch screen, each gun can applicated 8 sections of glue samples, and support point and line exchange. One-key switch to different types of product which in to control interface |
Model | HZ4 |
| Input Voltage | 220VAC（±20%）50-60HZ | ||
| Power | 480W | ||
| Glue Precision | ±1mm | ||
| Size | 280*233*183mm | ||
| The number of guns | Optional,up to 4/8 | ||
| The number of electric eye | Optional,up to 4/8 | ||
| Weight | 5kg | ||
|
Application of pisto pump 1:6 high pressure pisto pump transfer information with controller.Equipped with automatic voltage regulator to ensure the glue in the same size. |
Model | HB6 |
| Maximum Viscosity of glue | 3000mPas | ||
| Two-way transport efficiency | 80cm | ||
| Input Air pressure | 6:1 | ||
| Weight | 12.5kg | ||
| Size | 485*225*150 | ||
|
Gun Precision in ± mm at the speed of 300m/min |
Model | PJ-4000 |
| Size | 51.5*25*127 | ||
| Maximum Air Pressure | 32bar | ||
| Maximun Frquency | 500Hz |
