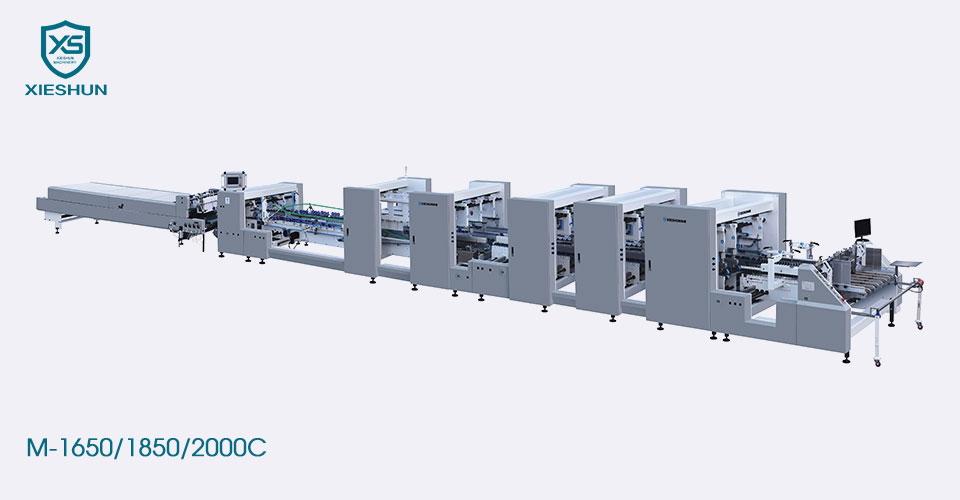

Automatic Heavy Duty Corrugated 4 and 6 Corner Folder Gluer

Alignment

◆The cardboard sent out by the paper feeding unit is corrected and guided by the correction unit to make the cardboard run in a straight line.
◆The upper pressure drive of the correction unit can be adjusted up and down to adapt to different cardboard thicknesses and provide stability guarantee.
◆Extra long alignment for guidance. 3 plates help to support wide corrugated paper.

Secondary Line pressing section

◆Secondary-creasing meet 3 Ply & 5 ply cartons folding perfectly.
◆Secondary-creasing can align the fish tail.

Pre-folding Section

◆The segmenedt left and right upper belt plates can be adjusted according to product requirements, which is fast and efficient.
◆It can efficiently complete the 180-degree pre- folding of the carton on line 1 and the 135-degree pre- folding of the 3rd line, optimizing the final forming effect.
◆Self-drive upper carriers, precise folding for corrugated boxes

Lock bottom

◆Three groups of carrier belt Structure

4 & 6-corner Device

◆The electronic folding hook driven and controlled by the intelligent servo motor is installed on two independently controlled servo axes to accurately guide the folding of all the box flaps.
◆It can produce four-corner and six-corner boxes and other different types.
◆The human- machine interface is intelligently set, easy to operate, intuitive and easy to understand.

Glue section

◆Mechanical left and right lower glue cylinders, with separate glue wheel and glue cylinder design, high speed without glue throwing, easy to clean and maintain.
◆The glue wheel is 20mm wide and can be replaced according to the product.

Folding Section

◆3-plate transmission belt plate Structure.
◆The left and right outer folding belt speeds can be fine- tuned independently to ensure molding accuracy.
◆Extra-wild outlet belt.
◆Self-drive upper carriers, precise folding for corrugated boxes.

Conveyor

◆Independent frequency conversion of separate motors.
◆Easy to adjust the upper and lower belt extension.
◆Equipped with high-speed electronic kick counter.

Pneumatic press bed

◆In automatic mode, the box spacing is set, the belt speed and the host speed are proportionally linked, and the belt moves when the photoelectric detects the box.
◆In manual mode, the belt moves at a constant speed and is not affected by the host speed.
◆The pressure part adopts pneumatic pressing, the pressure control is more precise, and the product bonding effect is more guaranteed.
