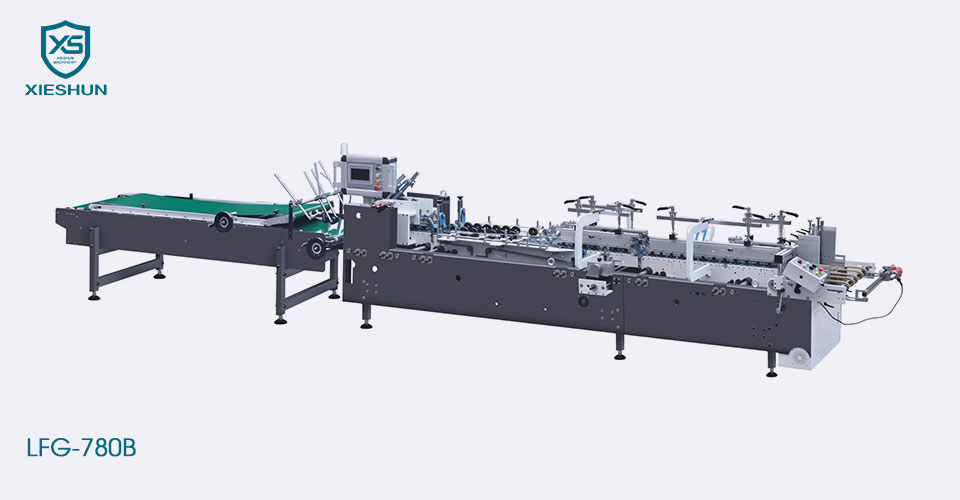

The LFG-780B Pre-Folder Automatic Folder Gluer is a comprehensive machine that incorporates a feeder, pre-folder, and folding capabilities. This advanced machinery is extensively utilized in the folding and gluing of paper boxes for various light industrial products, including those in the pharmacy, cigarette, wine, and cosmetic industries.
| Name | |
| Model | LFG-780 |
| Paper Material | Cardboard 200-800g |
| Max. Liner speed | Max. 250 meter/minute |
| Feeding way | Automatically and continuously feeding |
| Way of folding |
Fold 1 and fold 3 are 180°, Fold 2 and fold 4 are 90°and 180° Bottom folded and glued |
| Glue Material | Water-base cold glue |
| Electric power | 6.5kw 380v |
| Weight | 3.5T |
| Over dimension | 8.5x1.45x1.45m |
| Model | LFG-780 | |
|
A | 75-780mm |
| B | 60-780mm | |
| E | 35-320mm |
|
Feeding Independent carriers, 5 pcs very easy to replace belts, long service life of belts. Special vibrating motor is used for smoother paper feeding. Independent Feeder motor for adjust feeding speed easily. |
|
Pre-fold Double-board structure with a set of pre-folding knife. Pre-fold angle is 180°and 90°, especially suitable for small but high cartons, more satisfactory while rapid prototyping |
|
Folding Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection. |
|
Transfer Two carriers design, convenient pressure adjustment, stable box sticking. The pressure of top carriers can be adjusted according to box thickness With counting device to count the finished boxes to match with boxes regulating, easy to count and pack. |
|
Conveyor Long-distance upper and down belts design, prolongs the running time forfinished boxes, enhances the box gluing quality. Pneumatic pressure mechanism,more convenient adjustment. The running speed of belts in this section can be adjusted as demand. |
